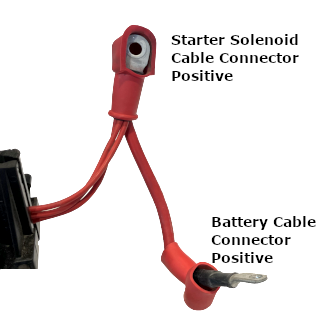

BATTERY TO SOLENOID CABLE CONNECTORS
| WIRE COLOR LEGEND | |
|---|---|
| BEIGE (TAN) | BG |
| BLACK | BK |
| LIGHT BLUE | BU |
| DARK BLUE | DB |
| BROWN | BN |
| GRAY | GY |
| LIGHT GREEN | GN |
| DARK GREEN | DG |
| ORANGE | OG |
| PINK | PK |
| RED | RD |
| VIOLET (PURPLE) | VT |
| WHITE | WH |
| YELLOW | YE |
| CLEAR | CL |
| WIRES WITH TWO COLORS ARE LISTED AS MAIN/TRACE. FOR EXAMPLE: RD/YE = RED WITH YELLOW TRACE. | |
| INDIAN CHASSIS WIRING LABEL | |
|---|---|
| BATTERY CONECTOR POWER CABLE To SOLENOID CONECTOR | 046 RD |
| SOLENOID POWER CABLE To ABS FUSE | 031 RD |
| SOLENOID POWER CABLE To MAIN FUSE | 026 RD |
| SOLENOID POWER CABLE To VOLTAGE REGULATOR | 014 RD |
