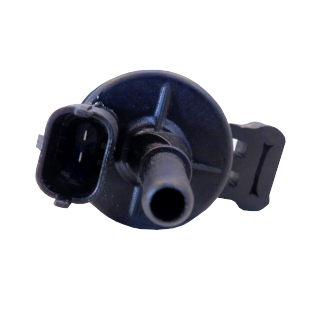

Canister Purge Valve (CPV)
| 2022 INDIAN SCOUT WIRE HARNESS COLOR LEGEND | |
|---|---|
| BEIGE (TAN) | BG |
| BLACK | BK |
| LIGHT BLUE | BU |
| DARK BLUE | DB |
| BROWN | BN |
| GRAY | GY |
| LIGHT GREEN | GN |
| DARK GREEN | DG |
| ORANGE | OG |
| PINK | PK |
| RED | RD |
| VIOLET (PURPLE) | VT |
| WHITE | WH |
| YELLOW | YE |
| CLEAR | CL |
| WIRES WITH TWO COLORS ARE LISTED AS MAIN/TRACE. FOR EXAMPLE: RD/YE = RED WITH YELLOW TRACE. | |
| WIRE FUNCTION PIN # | |
|---|---|
| PIN 1 | CANISTER PURGE VALVE (CPV) CONTROL - Dark Blue and Black |
| PIN 2 | PURGE VALVE POWER - Violet and Yellow |
| INDIAN CHASSIS WIRING LABEL | |
|---|---|
| PIN 1 | E235 DB/BK |
| PIN 2 | FPPWR-3 VT/YE |
