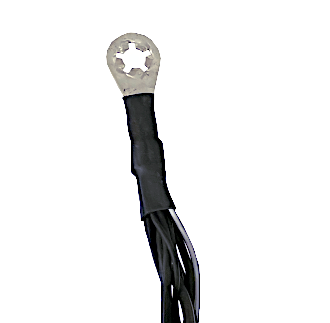

8-WIRE CHASSIS GROUND
| 2022 INDIAN SCOUT WIRE HARNESS COLOR LEGEND | |
|---|---|
| BEIGE (TAN) | BG |
| BLACK | BK |
| LIGHT BLUE | BU |
| DARK BLUE | DB |
| BROWN | BN |
| GRAY | GY |
| LIGHT GREEN | GN |
| DARK GREEN | DG |
| ORANGE | OG |
| PINK | PK |
| RED | RD |
| VIOLET (PURPLE) | VT |
| WHITE | WH |
| YELLOW | YE |
| CLEAR | CL |
| WIRES WITH TWO COLORS ARE LISTED AS MAIN/TRACE. FOR EXAMPLE: RD/YE = RED WITH YELLOW TRACE. | |
| WIRE FUNCTION PIN # | |
|---|---|
| PIN 1 | - BLACK |
| PIN 2 | - BLACK with WHITE |
| PIN 3 | - BLACK |
| PIN 4 | - BLACK with WHITE |
| PIN 5 | - BLACK |
| PIN 6 | - BLACK |
| PIN 7 | - BLACK |
| PIN 8 | - BLACK |
| INDIAN CHASSIS WIRING LABEL | |
|---|---|
| PIN 1 | 018 BK |
| PIN 2 | GND3-1 BK/WH |
| PIN 3 | GND4-1 BK |
| PIN 4 | GND5-1 BK/WH |
| PIN 5 | 021 BK |
| PIN 6 | GND2-1 BK |
| PIN 7 | 016 BK |
| PIN 8 | 015 BK |
