CRANKSHAFT POSITION SENSOR

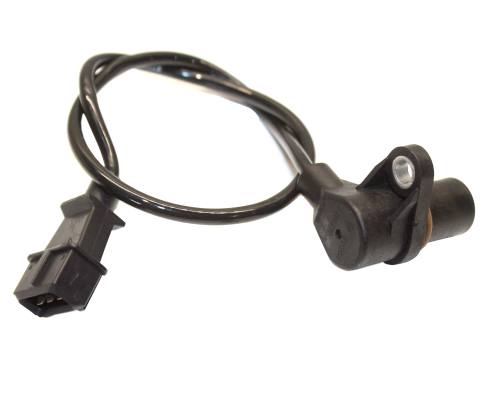

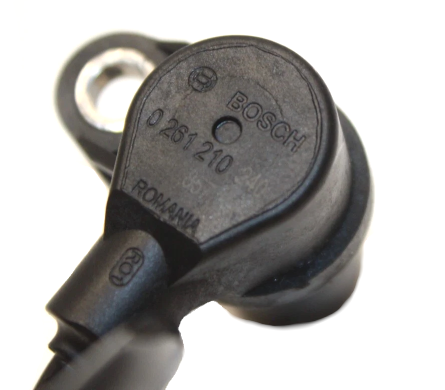

The crankshaft position sensor on the Indian Scout is located inside the drive sprocket cover, below the drive sprocket. To access it, you may need to remove the side cover of the motorcycle.
| WIRE COLOR LEGEND | ||
|---|---|---|
| BEIGE (TAN) | BG | |
| BLACK | BK | |
| LIGHT BLUE | BU | |
| DARK BLUE | DB | |
| BROWN | BN | |
| GRAY | GY | |
| LIGHT GREEN | GN | |
| DARK GREEN | DG | |
| ORANGE | OG | |
| PINK | PK | |
| RED | RD | |
| VIOLET (PURPLE) | VT | |
| WHITE | WH | |
| YELLOW | YE | |
| CLEAR | CL | |
| WIRES WITH TWO COLORS ARE LISTED AS MAIN/TRACE. FOR EXAMPLE: RD/YE = RED WITH YELLOW TRACE. | ||

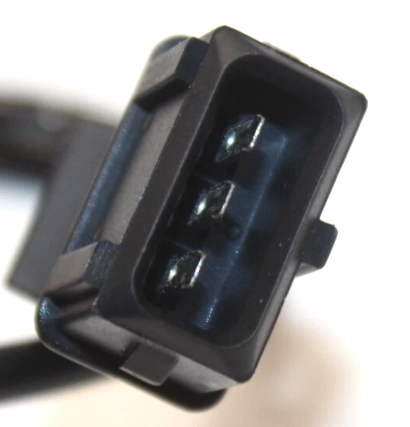

| PIN | FUNCTION |
| 1 | CRANKSHAFT POSITION SENSOR POSITIVE SIGNAL |
| 2 | CPS NEGATIVE SIGNAL |
| 3 | CRANK POSITION SENSOR SHIELD |
1 C07-1 White
2 C07-2 Black
3 C07-3 Sheild
