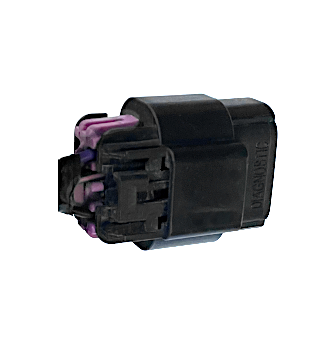

OBDII DIAGNOSTIC PORT
| WIRE COLOR LEGEND | |
|---|---|
| BEIGE (TAN) | BG |
| BLACK | BK |
| LIGHT BLUE | BU |
| DARK BLUE | DB |
| BROWN | BN |
| GRAY | GY |
| LIGHT GREEN | GN |
| DARK GREEN | DG |
| ORANGE | OG |
| PINK | PK |
| RED | RD |
| VIOLET (PURPLE) | VT |
| WHITE | WH |
| YELLOW | YE |
| CLEAR | CL |
| WIRES WITH TWO COLORS ARE LISTED AS MAIN/TRACE. FOR EXAMPLE: RD/YE = RED WITH YELLOW TRACE. | |

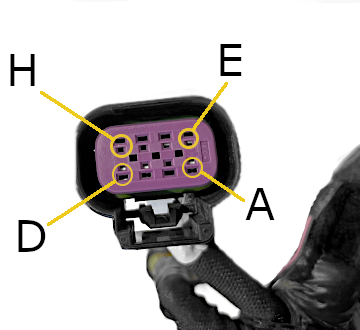

| PIN | FUNCTION |
| A | DIAGNOSTIC CONNECTOR CONSTANT POWER |
| B | DIAGNOSTIC CONNECTOR SWITCHED POWER |
| C | NA |
| D | DIAGNOSTIC CONNECTOR GROUND |
| E | NA |
| F | NA |
| G | DIAGNOSTIC CONNECTOR CAN LOW |
| H | DIAGNOSTIC CONNECTOR CAN HIGH |
