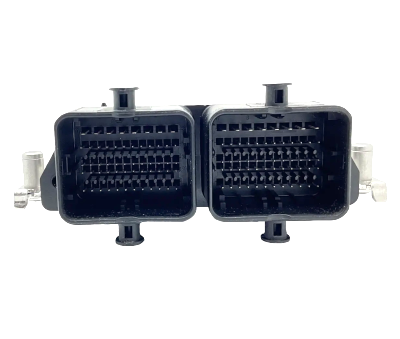

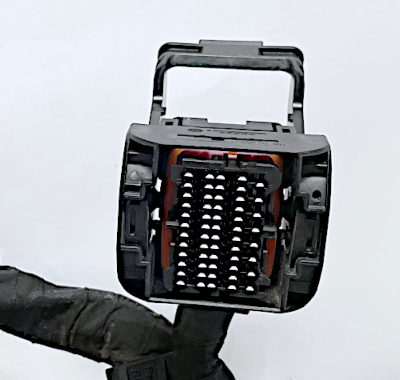

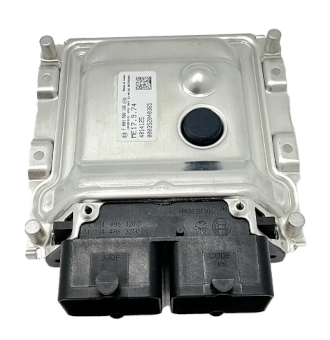

| ECM 1 |
| PIN |
FUNCTION |
| 103 |
PEDAL POSITION SENSOR 2 RETURN |
| 104 |
TMAP SENSOR SIGNAL RETURN |
| 105 |
TPS SIGNAL RETURN |
| 106 |
PEDAL POSITION SENSOR 1 RETURN |
| 107 |
START SWITCH OUTPUT (TO ECM) |
| 108 |
RIGHT TURN SIGNAL SWITCH OUTPUT (TO ECM) |
| 110 |
GEAR SELECT SWITCH OUTPUT (TO ECM) |
| 111 |
PEDAL POSITION SENSOR 2 SIGNAL |
| 115 |
ENGINE RELAY CONTROL |
| 116 |
ECM SWITCHED POWER INPUT |
| 119 |
CLUTCH SWITCH OUTPUT (TO ECM) |
| 120 |
LEFT TURN SIGNAL SWITCH OUTPUT (TO ECM) |
| 121 |
PEDAL POSITION SENSOR 1 SIGNAL |
| 123 |
ECM RUN/STOP SWITCH INPUT |
| 124 |
FRONT BRAKE SWITCH OUTPUT (TO ECM) |
| 125 |
PEDAL POSITION SENSOR +2.5V SUPPLY |
| 126 |
TIP-OVER SENSOR +5V REF |
| 131 |
COOLING FAN RELAY CONTROL |
| 132 |
ECM CAN HIGH |
| 135 |
OFF/ACC |
| 137 |
GEAR SELECT SENSOR +5V SUPPLY (VS3) |
| 138 |
TPS +3.3v REFERENCE |
| 140 |
HEADLIGHT RELAY CONTROL |
| 141 |
STARTER SOLENOID RELAY CONTROL |
| 142 |
FUEL PUMP RELAY CONTROL |
| 144 |
ECM CAN LOW |
| 147 |
SIDESTAND SWITCH SIGNAL |
| 150 |
REAR RIGHT STOP |
| 151 |
REAR LEFT STOP |
| 153 |
ECM POWER GROUND 2 |
| 154 |
ECM POWER GROUND 3 |
| 155 |
ECM SWITCHED POWER 2 |
| 156 |
ECM SWITCHED POWER 2 |
