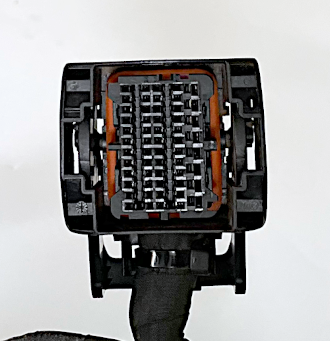

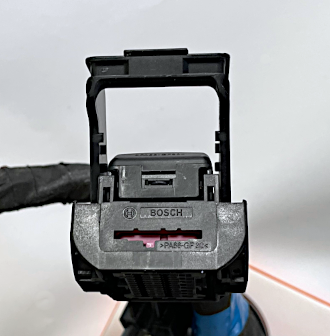

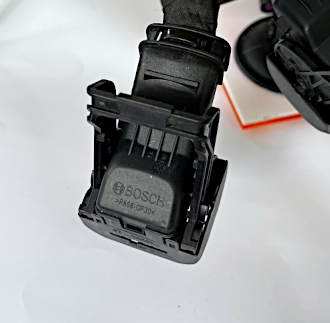

| ECM 2 |
| PIN |
FUNCTION |
| 201 |
PEDAL POSITION SENSOR 2 RETURN |
| 202 |
TMAP SENSOR SIGNAL RETURN |
| 203 |
TPS SIGNAL RETURN |
| 204 |
PEDAL POSITION SENSOR 1 RETURN |
| 205 |
START SWITCH OUTPUT (TO ECM) |
| 206 |
RIGHT TURN SIGNAL SWITCH OUTPUT (TO ECM) |
| 207 |
GEAR SELECT SWITCH OUTPUT (TO ECM) |
| 208 |
PEDAL POSITION SENSOR 2 SIGNAL |
| 210 |
ENGINE RELAY CONTROL |
| 212 |
ECM SWITCHED POWER INPUT |
| 213 |
CLUTCH SWITCH OUTPUT (TO ECM) |
| 215 |
LEFT TURN SIGNAL SWITCH OUTPUT (TO ECM) |
| 217 |
PEDAL POSITION SENSOR 1 SIGNAL |
| 218 |
ECM RUN/STOP SWITCH INPUT |
| 219 |
FRONT BRAKE SWITCH OUTPUT (TO ECM) |
| 220 |
PEDAL POSITION SENSOT +2.5V SUPPLY |
| 223 |
TIP-OVER SENSOR +5V REF |
| 224 |
GEAR SELECT SWITCH OUTPUT (TO ECM) |
| 227 |
PEDAL POSITION SENSOR 2 SIGNAL |
| 230 |
ENGINE RELAY CONTROL |
| 232 |
ECM SWITCHED POWER INPUT |
| 235 |
CLUTCH SWITCH OUTPUT (TO ECM) |
| 215 |
LEFT TURN SIGNAL SWITCH OUTPUT (TO ECM) |
| 236 |
PEDAL POSITION SENSOR 1 SIGNAL |
| 239 |
ECM RUN/STOP SWITCH INPUT |
| 241 |
FRONT BRAKE SWITCH OUTPUT (TO ECM) |
| 243 |
PEDAL POSITION SENSOT +2.5V SUPPLY |
| 244 |
TIP-OVER SENSOR +5V REF |
| 248 |
ECM RUN/STOP SWITCH INPUT |
| 250 |
FRONT BRAKE SWITCH OUTPUT (TO ECM) |
| 251 |
PEDAL POSITION SENSOT +2.5V SUPPLY |
| 252 |
TIP-OVER SENSOR +5V REF |
| 254 |
PEDAL POSITION SENSOT +2.5V SUPPLY |
| 256 |
TIP-OVER SENSOR +5V REF |
