| WIRE COLOR LEGEND | |
|---|---|
| BEIGE (TAN) | BG |
| BLACK | BK |
| LIGHT BLUE | BU |
| DARK BLUE | DB |
| BROWN | BN |
| GRAY | GY |
| LIGHT GREEN | GN |
| DARK GREEN | DG |
| ORANGE | OG |
| PINK | PK |
| RED | RD |
| VIOLET (PURPLE) | VT |
| WHITE | WH |
| YELLOW | YE |
| CLEAR | CL |
| WIRES WITH TWO COLORS ARE LISTED AS MAIN/TRACE. FOR EXAMPLE: RD/YE = RED WITH YELLOW TRACE. | |

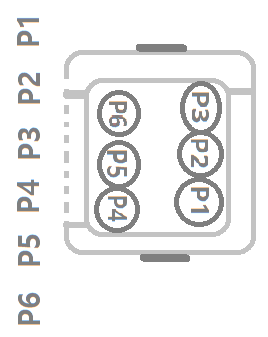

ETC GRIP
| PIN | FUNCTION |
| P1 | PEDAL POSITION SENSOR 2 SIGNAL |
| P2 | PEDAL POSITION SENSOR 2 RETURN |
| P3 | PEDAL POSITION SENSOR 2 +5V SUPPLY |
| P4 | PEDAL POSITION SENSOR 1 SIGNAL |
| P5 | PEDAL POSITION SENSOR 1 RETURN |
| P6 | PPS 1 +5V REFERENCE |
