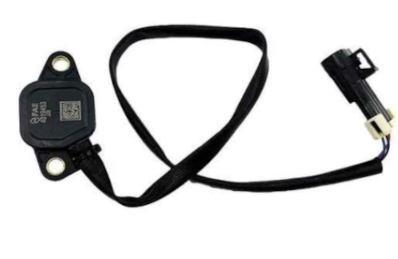

GEAR SELECT SENSOR
The gear select sensor on the Indian Scout is located inside the drive sprocket cover, below the drive sprocket. To access it, you may need to remove the side cover of the motorcycle.
| WIRE COLOR LEGEND | |
|---|---|
| BEIGE (TAN) | BG |
| BLACK | BK |
| LIGHT BLUE | BU |
| DARK BLUE | DB |
| BROWN | BN |
| GRAY | GY |
| LIGHT GREEN | GN |
| DARK GREEN | DG |
| ORANGE | OG |
| PINK | PK |
| RED | RD |
| VIOLET (PURPLE) | VT |
| WHITE | WH |
| YELLOW | YE |
| CLEAR | CL |
| WIRES WITH TWO COLORS ARE LISTED AS MAIN/TRACE. FOR EXAMPLE: RD/YE = RED WITH YELLOW TRACE. | |
| PIN | FUNCTION |
| A | GEAR SELECT SENSOR +5V SUPPLY (VS3) |
| B | GEAR SENSOR SIGNAL RETURN |
| C | GEAR SELECT SWITCH OUTPUT (TO ECM) |
| PIN | FUNCTION |
| A | E137 BROWN WITH RED STRIPE |
| B | E104-2 BROWN WITH GREEN STRIPE |
| C | E110 BLACK WITH PINK STRIPE |
