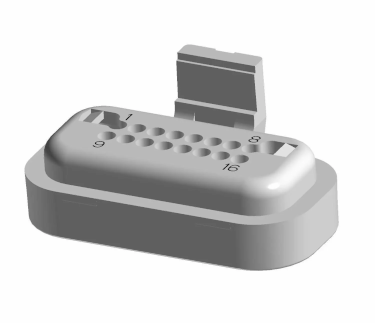

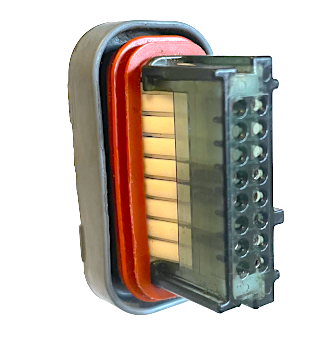

SPEEDOMETER CONNECTOR
| HARNESS WIRE COLOR LEGEND | |
|---|---|
| BEIGE (TAN) | BG |
| BLACK | BK |
| LIGHT BLUE | BU |
| DARK BLUE | DB |
| BROWN | BN |
| GRAY | GY |
| LIGHT GREEN | GN |
| DARK GREEN | DG |
| ORANGE | OG |
| PINK | PK |
| RED | RD |
| VIOLET (PURPLE) | VT |
| WHITE | WH |
| YELLOW | YE |
| CLEAR | CL |
| WIRES WITH TWO COLORS ARE LISTED AS MAIN/TRACE. FOR EXAMPLE: RD/YE = RED WITH YELLOW TRACE. | |
| PIN | FUNCTION |
| 01 | C04-1 YE |
| 02 | 2- C04-2 DG |
| 03 | 3- ACCF-5 BN/PK |
| 04 | 4- IGNBRK-2 OG |
| 05 | 5- GND5-6 BK/WH |
| 06 | 6- HIGH-2 YE |
| 07 | 7- 029 BK/BN |
| 08 | 8- 007 WH/BK |
| 09 | 9- FUELSND-3 BK/DG |
| PIN | FUNCTION |
| 01 | SPEEDOMETER CAN HIGH |
| 02 | SPEEDOMETER CAN LOW |
| 03 | SPEEDOMETER SWITCHED POWER |
| 04 | SPEEDOMETER CONSTANT POWER |
| 05 | SPEEDOMETER GROUND |
| 08 | HIGH BEAM INDICATOR INPUT |
| 10 | OIL PRESSURE SWITCH OUTPUT |
| 12 | MODE SWITCH OUTPUT |
| 13 | FUEL LEVEL SENSOR SIGNAL |
