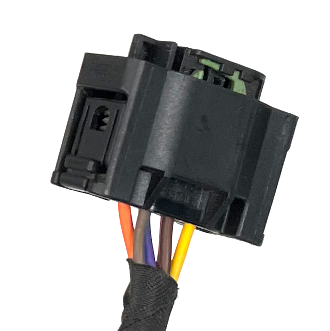

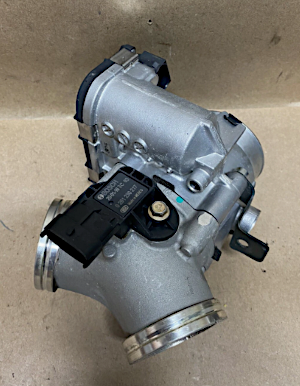

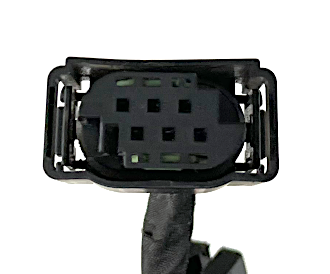

THROTTLE BODY SENSOR/CONNECTOR
| WIRE COLOR LEGEND | |
|---|---|
| BEIGE (TAN) | BG |
| BLACK | BK |
| LIGHT BLUE | BU |
| DARK BLUE | DB |
| BROWN | BN |
| GRAY | GY |
| LIGHT GREEN | GN |
| DARK GREEN | DG |
| ORANGE | OG |
| PINK | PK |
| RED | RD |
| VIOLET (PURPLE) | VT |
| WHITE | WH |
| YELLOW | YE |
| CLEAR | CL |
| WIRES WITH TWO COLORS ARE LISTED AS MAIN/TRACE. FOR EXAMPLE: RD/YE = RED WITH YELLOW TRACE. | |
| PIN | THROTTLE BODY |
| 1 | ETC MOTOR (-) |
| 2 | TPS SIGNAL RETURN |
| 3 | TPS +3.3V REFERENCE |
| 4 | ETC MOTOR (+) |
| 5 | THROTTLE POSITION SENSOR 2 SIGNAL |
| 6 | THROTTLE POSITION SENSOR 1 SIGNAL |
| PIN | CODE and WIRE COLOR |
| 1 | E203 OG/YE - Orange with Yellow Stripe |
| 2 | E220 VT/RD - Violet with Red Stripe |
| 3 | C10-1 PK/RD - Pink with Red Stripe |
| 4 | E138 BN/DB - Brown with Dark Blue Stripe |
| 5 | E105 BN/WH - Brown with White Stripe |
| 6 | C10-2 YE - Yellow |
