Why Do I Need a Power Distribution Module?

Get help from the experts by using a power distribution module when you install custom motorcycle accessories. No one wants to void a warranty or damage wiring. A power distribution module can give you peace of mind while connecting expensive, custom components to volatile 12V battery power.

A power distribution module will help you avoid the need to alter your wiring. It will provide built-in electrical safeguards like voltage regulation. Most PDMs offer fused circuits for varied power requirements. Some allow you to use a computer application to program each circuits switching functionality. For example, you can enable turn signals to shut-off automatically after x number of seconds, instead of trying to remember to do-it-yourself.

Installing a new headlight, handlebar buttons, or turn signals that rely on complex electrical components can be difficult. A good power distribution module makes it much easier and safer.

What does the PDM install look like?

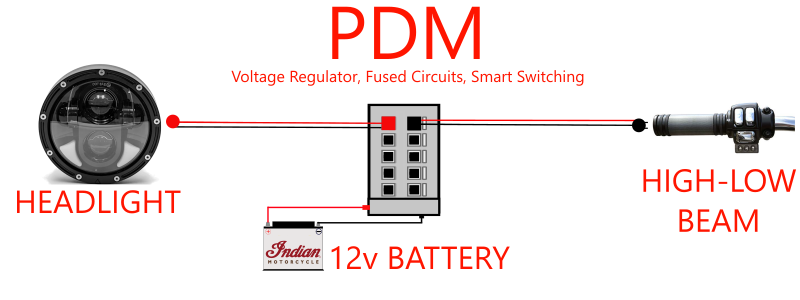

The simplified configuration below shows how a PDM acts as a central wiring connection. It also provides an organized layout and the power for accessories. A typical PDM can fit under a seat or in a cowling. The manufacturer should provide you with an easy to understand installation guide

lighting controller

When I planned to install new handlebar buttons, a headlight, and turn signals on my 2022 Indian Scout Bobber Twenty, I quickly realized it would be difficult without a PDM. The Purpose Built Moto website includes the following information about the Black Box V3, "By incorporating smart features like auto-cancelling turn signals the Black Box module significantly improves motorcycle visibility and safety on the road. The module's intelligent functionality ensures that turn signals are automatically deactivated after completing a turn, reducing the chances of confusion for other motorists and enhancing overall road safety." For me, the functionality of the Black Box V3 was exactly what I needed. The documentation to get it installed correctly, convinced me to buy.

Are you unsure what your options are? Let me save you a few hours. I also installed the PDM60 from Rowe Electronics on a Kawasaki Versys 1000. The PDM60 is a power distribution module that allows you to safely and easily connect accessories. I used it to provide a delayed power-on circuit to after market fog lights. The PDM60 is a high quality product that works well.

The following list can help you get you started.

Purpose Built Moto - Black Box V3

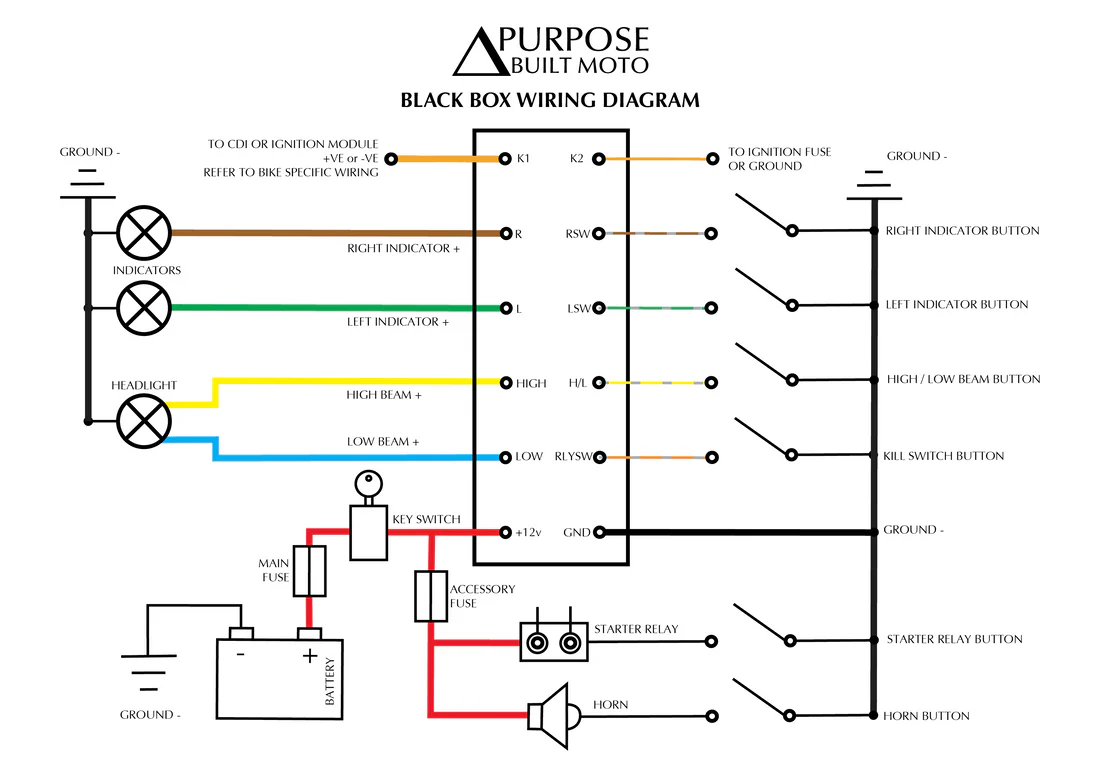

black box lighting controller black box lighting controller black box lighting controller

The following functionality is controlled by momentary-on buttons. Lighting functions are compatible with LED and incandescent lighting without the use of resistors.

Black Box V3 Specifications

Fitment

Dimensions

Purpose Built Moto - Black Box V3 Installation Documentation
